Application:

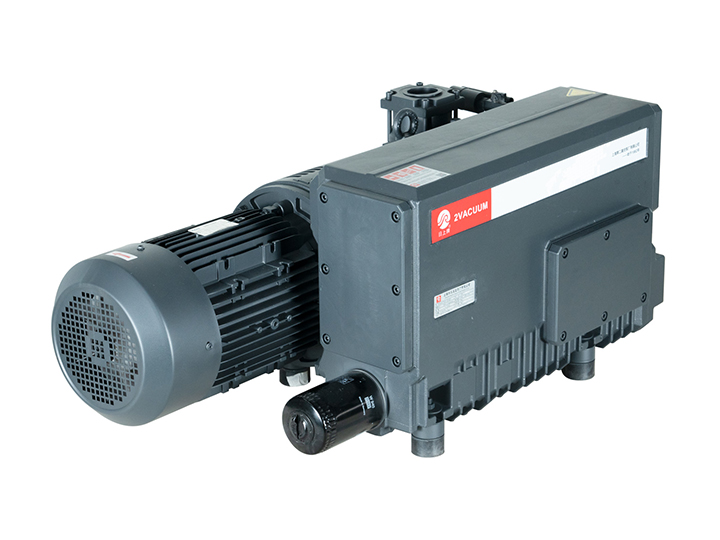

This pump is suitable for the situation which requires less vacuum, reliable operations and convenient maintenance.Currently, this pump is widely applied to vacuum disposal such as vacuum packaging of various food products, vacuum forming of robber and plastics industry, paper transfer of printing industry, vacuum leak-proof for various casting, vacuum fixtures, vacuum drying, vacuum filters, vacuum power test and hospital operating room vacuum extracting etc.
Features:
Long period continuous work under the situation of inlet pressure 5×104Pa.
Low noise, small vibration,without foot bolt.
Oil-water separator in the machine can effectively seperate the oil from the gas, so as to avoid environmental pollution.
Directly driven by electronic motor.
Compact structure, low weight and air-cooling is used.
Easy to operate,easy to install and maintain.
Main specifications:
|
Model |
XD-010 |
XD-020 |
XD-025 |
XD-040C |
XD-40 |
XD-63D |
XD-063C |
XD-100C |
XD-160C |
XD-202C |
XD-250C |
XD-302C |
|
Pumping speed(m³/h) |
10 |
20 |
25 |
40 |
40 |
63 |
63 |
100 |
160 |
200 |
250 |
300 |
|
Ultimate pressure(≤Pa) |
200 |
200 |
200 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Power(kw) |
0.37 |
0.75 |
0.9 |
1.1 |
1.5 |
1.5 |
1.5/2.2 |
2.2/3 |
4 |
4/5.5 |
5.5 |
7.5 |
|
Speed(r/min) |
1440 |
2880 |
2880 |
1450 |
1450 |
1450 |
1450 |
1450 |
1450 |
1450 |
1450 |
1450 |
|
Water vapour capacity(kg/h) |
0.4 |
0.4 |
0.4 |
0.6 |
0.6 |
1 |
1 |
1.5 |
2.5 |
4 |
4.5 |
5 |
|
Noise dB(A) |
62 |
64 |
65 |
64 |
70 |
65 |
65 |
66 |
71 |
73 |
73 |
75 |
|
Oil capacity(L) |
0.5 |
0.5 |
0.5 |
1.5 |
1.3 |
2 |
2.5 |
2.5 |
5 |
5 |
7 |
7 |
|
Air inlet(inch) |
1/2" |
1/2" |
3/4" |
1 1/4" |
1 1/4" |
1 1/4" |
1 1/4" |
1 1/4" |
2" |
2" |
2" |
2" |
|
Weight(kg) |
16 |
18 |
20 |
48 |
58 |
49 |
58 |
72 |
158 |
158 |
195 |
211 |
|
Size(mm) |
410*235*200 |
420*235*200 |
420*235*200 |
615*280*260 |
660*310*270 |
610*350*295 |
610*410*295 |
720*410*295 |
860*480*440 |
860*480*440 |
980*560*440 |
1010*560*440 |
Remarks: The vacuum pump assists the water cooling setting, including 0.4 square meters of stainless steel 316L plate heat exchanger, oil circuit distributor, fastening joints, and the whole set of installation plates, which can reduce the pump temperature by about 10 degrees. After the user purchases, it is convenient to install it yourself, and the 15-25 degree cooling water is turned on, and the flow rate is about 0.2-1 cubic meters per hour.
