Model-SZ-Single-Stage-Water-Ring-Vacuum-Pump-Shanghai Second Vacuum Pump Factory Co., Ltd.

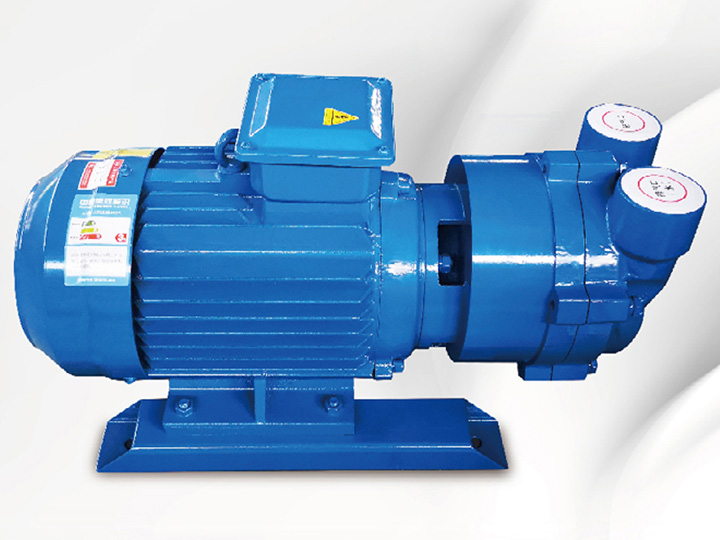

Model-SZ-Single-Stage-Water-Ring-Vacuum-Pump

Application:
Water-ring vacuum pump is mainly used in the process of rough vacuum, highy-volume extraction and widely used in the sectors such as chemical, petroleum and light industry department.
It is mainly used to extract gas, transfer air and other gases.
Especially in the use of extraction for large quantity of water vapor or condensable and corrosive gas.
For example, distillation, concentration and drying in chemical industry, vacuum degassing and shaping in plastic products industry, drying in fur industry, vacuum concentration in beverage industry, vacuum dehydration in textile and paper industry etc.

Features:
Reliable Operation
Easy to use
Strong durability
Can extract for corrosilve gas
Can extract gas contained with dusts
Can extract gas-water mixture
Can be indepently configured for Units use

Main specifications:

Model	Pumping speed (m³/h)	Uitimate pressur ≤（Pa)	Motor power (kw)	Speed (r/min)	Water Capacity (m³/h)	Weight (kg)	Overall dimensinons (mm)
SZ-20	20	4*10³	1.5	2840	0.2	40	400260240
SZ-40	40	4*10³	2.2	2840	0.23	40	460260245
SZ-63	63	4*10³	3	2840	0.28	42	530310280
SZ-100	100	4*10³	4	2880	0.45	55	565320290
SZ-160	160	4*10³	7.5	2880	0.72	80	620365335
SZ-250	250	4*10³	7.5	1440	1.5	105	1255500655
